Check for Terminal Part Numbers

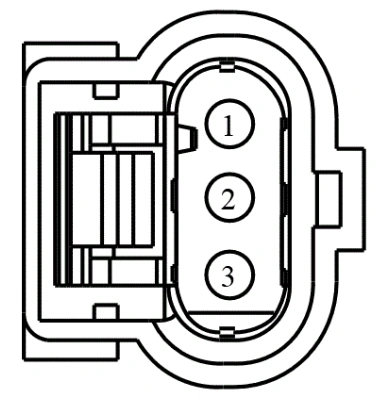

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE328 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # POS. CRANKCASE PRESSURE SENSOR (CKCP) | |
2 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
3 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 |
