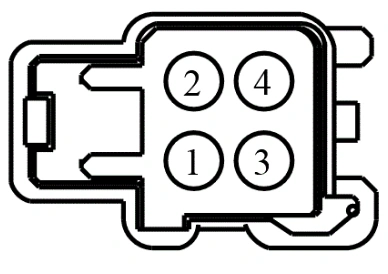

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VDB29 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
2 | VDB30 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
3 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
4 | VDB07 (VT) 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
Available Pigtail Kits
Pigtail Kit Part Number Service Part Number:
WPT-1076 3U2Z-14S411-BUB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
