CONNECTOR VIEWS > CONNECTOR END VIEW C197A - STARTER MOTOR

Connector:C197A

Description

STARTER MOTOR

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

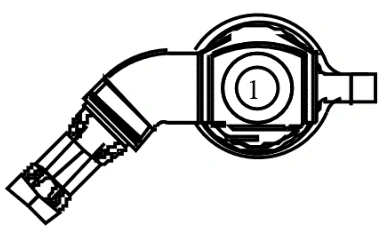

Connector End View C197a - Starter Motor — original illustration 2, reference 3785Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
