Connector End View C197c - Starter Motor — OEM Connector End Views · Reference 3786

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC04 (RD)	2	BATTERY - AUXILIARY # PLUS

CONNECTOR VIEWS > CONNECTOR END VIEW C197B - STARTER MOTOR

Connector:C197B

Description

STARTER MOTOR

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

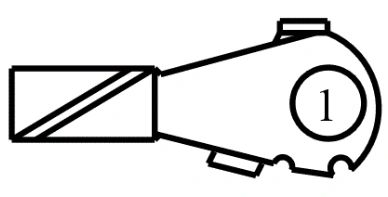

Connector End View C197c - Starter Motor — original illustration 1, reference 3786Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC25 (BN-GN)	14	RELAY - STARTER

CONNECTOR VIEWS > CONNECTOR END VIEW C197C - STARTER MOTOR

Connector:C197C

Ford_Mustang_all_2015-2017.pdf · source reference 3786
