Connector End View C205 - Headlamp Switch

OEM Connector End Views

Source configuration appliesSource reference 3,788HTML edition

Service Pigtail

Not Available

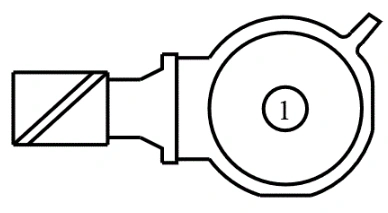

Connector End View C205 - Headlamp Switch — original illustration 1, reference 3788Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC04 (YE-RD)	4	BATTERY - AUXILIARY # PLUS

CONNECTOR VIEWS > CONNECTOR END VIEW C205 - HEADLAMP SWITCH

Connector:C205

Description

HEADLAMP SWITCH

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below
