Connector End View C209 - Footwell Lamp LH

OEM Connector End Views

Source configuration appliesSource reference 3,791HTML edition
← Chapter contentsManual collection

Description

FOOTWELL LAMP LH

Color

LT GY

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

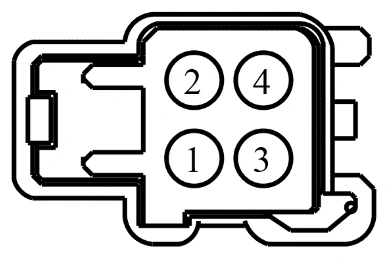

Connector End View C209 - Footwell Lamp LH — original illustration 1, reference 3791Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CLN44 (OG)

26

CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED +

2

CLN45 (GN)

26

CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN +

3

CLN46 (BU)

26

CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE +

4

RLN44 (BN)

26

CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED -
