Connector End View C209 - Footwell Lamp LH

OEM Connector End Views

Source configuration appliesSource reference 3,790HTML edition
← Chapter contentsManual collection
10 CLF23 (WH) 26 SWITCH - HEADLAMP OFF 11 CLS34 (GY) 26 SWITCH - PARK LAMPS 12 CLF18 (BU) 26 SWITCH - BEAM LOW 13 CLF19 (VT) 26 SWITCH - AUTOLAMP (1) ON 14 CLF21 (GY) 26 SWITCH - FOG LAMPS FRONT 15 VLN04 (VT) 26 CTRL MOD. - IP/SWITCH ILLUMINATION 16 * * Not Used

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

CU2Z-14S411-AJA

WPT-1294

Gauge:

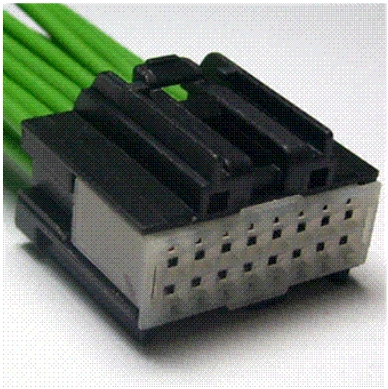

Connector End View C209 - Footwell Lamp LH — original illustration 1, reference 3790Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

16

Vehicle Uses

Mirror - Rearview

Mirror - Rearview (electrochromatic)

CONNECTOR VIEWS > CONNECTOR END VIEW C209 - FOOTWELL LAMP LH

Connector:C209

Ford_Mustang_all_2015-2017.pdf · source reference 3790
