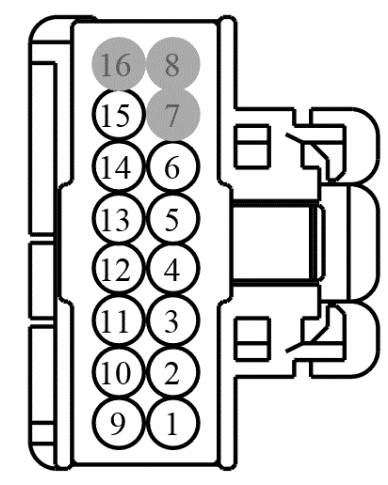

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VLF63 (VT) | 22 | CTRL MOD. - MOTOR HEADLAMP LEVELING SIGNAL | |
2 | CLF57 (YE-BU) 26 | SWITCH - FOG LAMPS REAR | ||
3 | CLN56 (BN) | 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | |
4 | GD214 (BK-BU) 20 | GROUND - INSTRUMENT PANEL STRUCTURE | ||
5 | GD216 (BK-VT) 18 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | ||
6 | CLN55 (YE-GN) 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | ||
7 | * | * | Not Used | |
8 | * | * | Not Used | |
9 | CBB68 (GY-VT) 22 | FUSE - 68 OR CIRCUIT BREAKER |
