Connector End View C197d - Starter Motor

OEM Connector End Views

Source configuration appliesSource reference 3,787HTML edition
← Chapter contentsManual collection

Description

STARTER MOTOR

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

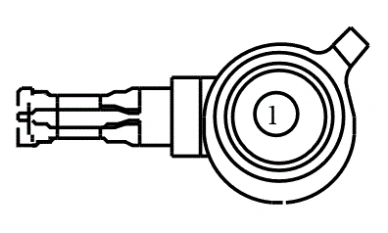

Connector End View C197d - Starter Motor — original illustration 1, reference 3787Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SDC04 (RD)

2

BATTERY - AUXILIARY # PLUS

CONNECTOR VIEWS > CONNECTOR END VIEW C197D - STARTER MOTOR

Connector:C197D

Description

STARTER MOTOR

Color

Harness

14B060

Base Part #

part# N/A
