Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBK02 (GN) | 20 | FUSE - 40 OR CIRCUIT BREAKER (VPWR) | |
2 | CE316 (BU) | 20 | CTRL MOD. - POWERTRAIN # INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1A) |

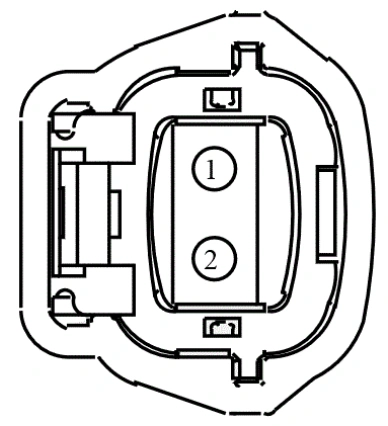

CONNECTOR VIEWS > CONNECTOR END VIEW C192 - TEST CONNECTOR
Connector:C192
Description
TEST CONNECTOR
Color
LT GY
Harness
14401
Base Part #
part# N/A
Service Pigtail
