Connector End View C216a - Driver Airbag

OEM Connector End Views

Source configuration appliesSource reference 3,806HTML edition
← Chapter contentsManual collection

Description

DRIVER AIRBAG

Color

Harness

14A664

Base Part #

74043B13

Service Pigtail

See Below

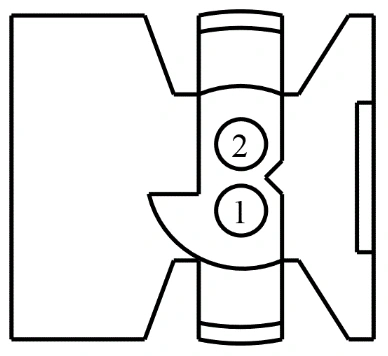

Connector End View C216a - Driver Airbag — original illustration 1, reference 3806Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR101 (WH)

20

CTRL MOD. - AIR BAG DRIVER 1 +

2

RR101 (BU)

20

CTRL MOD. - AIR BAG DRIVER 1 -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1223

Service Part Number:

BU2Z-14S411-BFA

Gauge:

20

Ford_Mustang_all_2015-2017.pdf · source reference 3806

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
