Pin Circuit Gauge Circuit Function Qualifier 1 CR102 (YE-GN) 20 CTRL MOD. - AIR BAG DRIVER 2 + 2 RR102 (VT-BN) 20 CTRL MOD. - AIR BAG DRIVER 2 -
Original table alignment retained · Scroll horizontally if needed

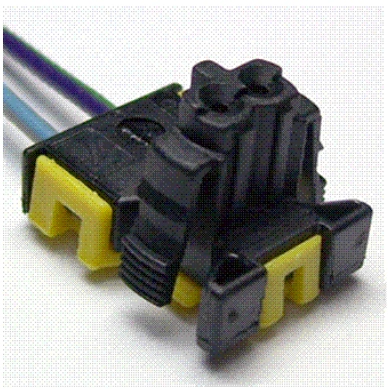

Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
BU2Z-14S411-BPA
WPT-1230
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses
Airbag - Side Curtain
Squib - Airbag (Passenger)
CONNECTOR VIEWS > CONNECTOR END VIEW C217 - HORN SWITCH
Connector:C217
Description
HORN SWITCH
Color
Harness
PIA
Base Part #
part# N/A
Service Pigtail
