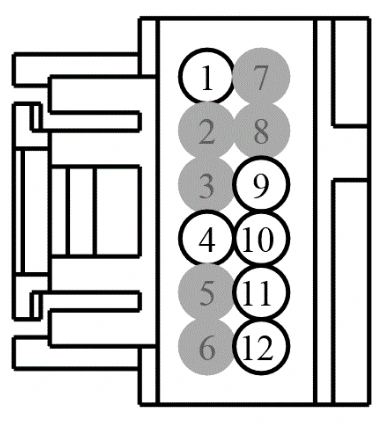

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
5 | * | * | Not Used | |
6 | * | * | Not Used | |
7 | * | * | Not Used | |
8 | * | * | Not Used | |
9 | CR102 (BU) | 22 | CTRL MOD. - AIR BAG DRIVER 2 + |
