Connector End View C218b - Clockspring

OEM Connector End Views

Source configuration appliesSource reference 3,813HTML edition

← Chapter contents Manual collection

Harness

PIA

Base Part #

14A644

Service Pigtail

See Below

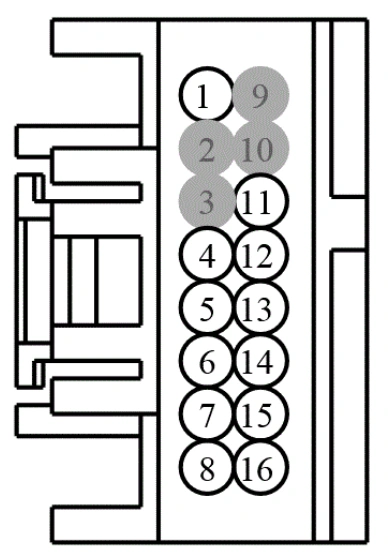

Connector End View C218b - Clockspring — original illustration 1, reference 3813Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE
2	*	*	Not Used
3	*	*	Not Used
4	* (*)	*	SWITCH - HORN
5	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
