10 RR102 (WH) 22 CTRL MOD. - AIR BAG DRIVER 2 - 11 RR101 (YE-GN) 22 CTRL MOD. - AIR BAG DRIVER 1 - 12 CR101 (VT-BN) 22 CTRL MOD. - AIR BAG DRIVER 1+
Original table alignment retained · Scroll horizontally if needed
Available Pigtail Kits
Service Part Number:
3U2Z-14S411-BMAB
Pigtail Kit Part Number Gauge:
WPT-949 18
Pin material:
Silver
Cavities:
12
Vehicle Uses
Control - Navigation Display
Module - Driver Door
Module - Front Interface
Monitor - Video/DVD
Switch - Gear Shift Select/Neutral Safety

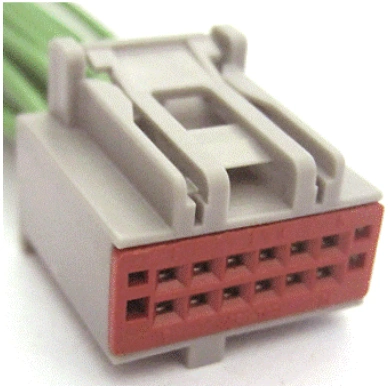

CONNECTOR VIEWS > CONNECTOR END VIEW C218B - CLOCKSPRING
Connector:C218B
Description
CLOCKSPRING
Color
GY
