Connector End View C216b - Driver Airbag

OEM Connector End Views

Source configuration appliesSource reference 3,807HTML edition
← Chapter contentsManual collection

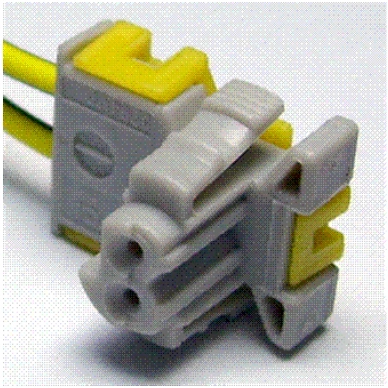

Connector End View C216b - Driver Airbag — original illustration 1, reference 3807Original colors & callouts · Select to enlarge

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Squib - Airbag (Passenger)

CONNECTOR VIEWS > CONNECTOR END VIEW C216B - DRIVER AIRBAG

Connector:C216B

Description

DRIVER AIRBAG

Color

Harness

14A664

Base Part #

74043B13

Service Pigtail

See Below

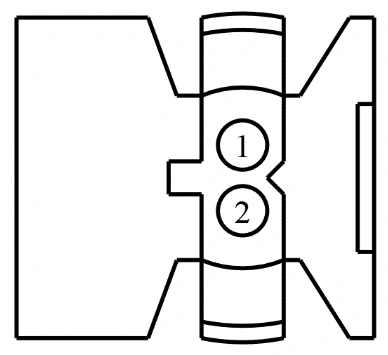

Connector End View C216b - Driver Airbag — original illustration 2, reference 3807Original colors & callouts · Select to enlarge
