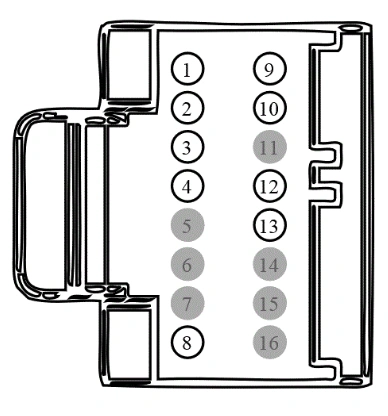

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RMC33 (GN-OG) | 22 | CTRL MOD. - SENSOR FUEL LEVEL 2 | |
2 | RMC32 (GN) | 26 | CTRL MOD. - SENSOR FUEL LEVEL | |
3 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
4 | CET52 (GN) | 26 | SWITCH - TRANSMISSION PARK DETECT | |
5 | * | * | Not Used | |
6 | * | * | Not Used | |
7 | * | * | Not Used | |
8 | SBP13 (GY-RD) | 22 | FUSE - 13 OR CIRCUIT BREAKER | |
9 | VMC23 | 22 | SENSOR - FUEL LEVEL 2 (FLI) |
