Connector End View C232 - Defrost Vent/Register Door Actuator — OEM Connector End Views · Reference 3821

VDN05 CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL 8 22 (YE-GY) MODULE 1 9 CET42 (GN) 26 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) 10 CET43 (GY) 26 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) CTRL MOD. - POWERTRAIN # SIGNAL RETURN 11 RE406 (VT) 26 TRANSMISSION (T-SIGRTN) (SIGRTN-B) 12 * * Not Used

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

9U2Z-14S411-DA

WPT-930

Gauge:

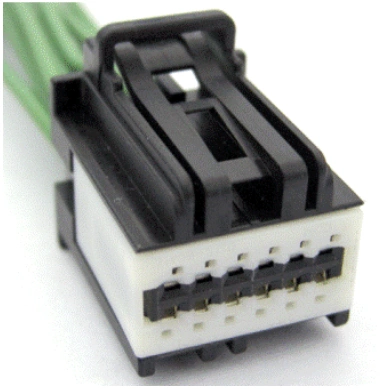

Connector End View C232 - Defrost Vent/Register Door Actuator — original illustration 1, reference 3821Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

12

Vehicle Uses

Module - Climate Control Seat

Module - Heated Seat (Rear)

CONNECTOR VIEWS > CONNECTOR END VIEW C232 - DEFROST VENT/REGISTER

DOOR ACTUATOR

Connector:C232

Description

DEFROST VENT/REGISTER DOOR ACTUATOR

Ford_Mustang_all_2015-2017.pdf · source reference 3821
