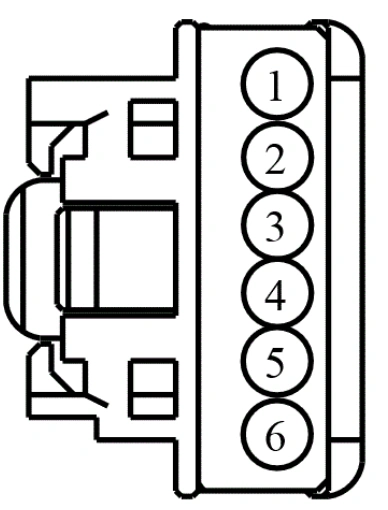

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RH103 (GY) | 22 | CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - | |
2 | VH414 (GN) | 26 | SENSOR - INCAR TEMP. | |
3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | |
4 | VH413 (BU-WH) | 26 | SENSOR - HUMIDITY | |
5 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
6 | CBP21 (BU-GY) | 22 | FUSE - 21 OR CIRCUIT BREAKER |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1242 | Service Part Number: 3U2Z-14S411-MJB |
