Connector End View C240a - Audio Control Module (Acm)

OEM Connector End Views

Source configuration appliesSource reference 3,825HTML edition

← Chapter contents Manual collection

Gauge:

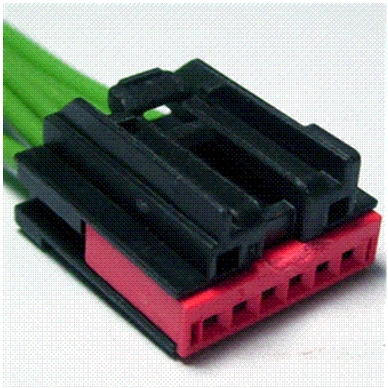

Connector End View C240a - Audio Control Module (Acm) — original illustration 1, reference 3825Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

6

Vehicle Uses

Indicator - Passenger Airbag Deactivation (PADI)

Sensor - EATC In Car Temperature

Switch - Multifunction

CONNECTOR VIEWS > CONNECTOR END VIEW C240A - AUDIO CONTROL MODULE

(ACM)

Connector:C240A

Description

AUDIO CONTROL MODULE (ACM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below
