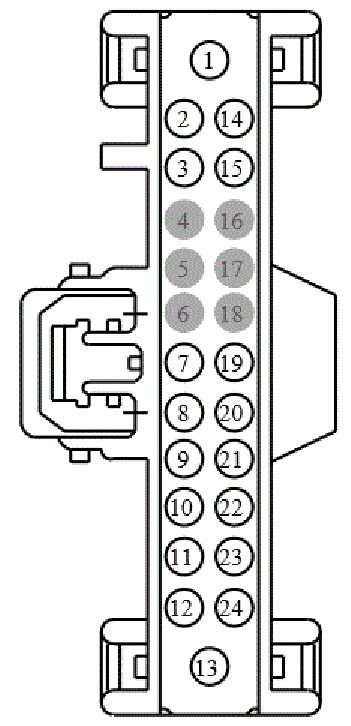

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP33 (RD) | 16 | FUSE - 33 OR CIRCUIT BREAKER | |
2 | CME44 (YE-GN) | 20 | CTRL MOD. - ANTENNA POWER # REAR WINDOW | |
3 | CDC54 (WH-GN) | 22 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
4 | * | * | Not Used | |
5 | * | * | Not Used |
