Connector End View C233 - In-Vehicle Temperature Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,823HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-MA

Pigtail Kit Part Number

Gauge:

WPT-1151

18

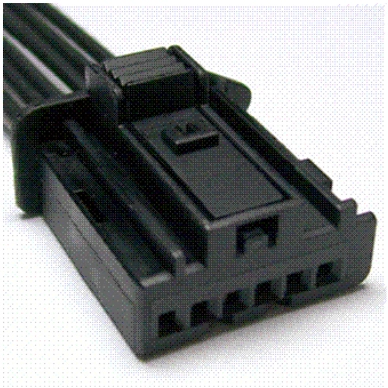

Connector End View C233 - In-Vehicle Temperature Sensor — original illustration 1, reference 3823Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

6

Vehicle Uses

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Inlet Door

CONNECTOR VIEWS > CONNECTOR END VIEW C233 - IN-VEHICLE TEMPERATURE

SENSOR

Connector:C233

Description

IN-VEHICLE TEMPERATURE SENSOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below
