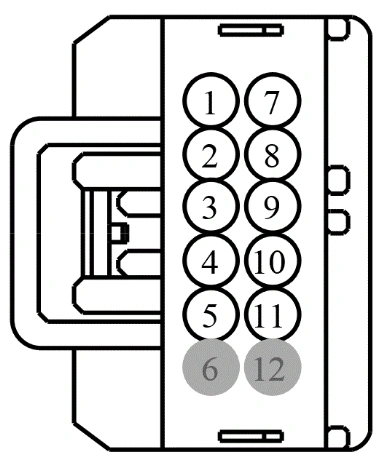

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RRH02 (GN-WH) | 26 | CTRL MOD. - SWITCH HORN | |
2 | CRW15 (BN) | 26 | CTRL MOD. - FRONT WIPER HIGH | |
3 | VDB25 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
4 | VDB26 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
5 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
6 | * | * | Not Used | |
7 | SBP13 (GY-RD) | 22 | FUSE - 13 OR CIRCUIT BREAKER |
