Color
Harness
18B574
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

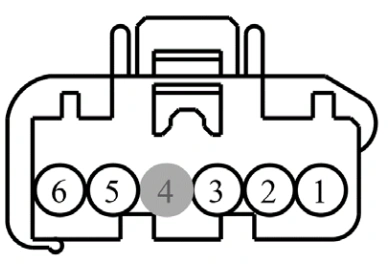

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
2 | VH436 (YE) | 26 | SENSOR - DOOR POSITION DEFROST | |
3 | LH111 (BN) | 26 | CTRL MOD. - CLIMATE # GENERIC VREF | |
4 | * | * | Not Used | |
5 | CH229 (WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2 / OPEN (IF PLUS) | |
6 | CH228 (YE) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1 / CLOSE (IF PLUS) |
