Connector End View C240b - Audio Control Module (Acm)

OEM Connector End Views

Source configuration appliesSource reference 3,829HTML edition

Service Pigtail

Not Available

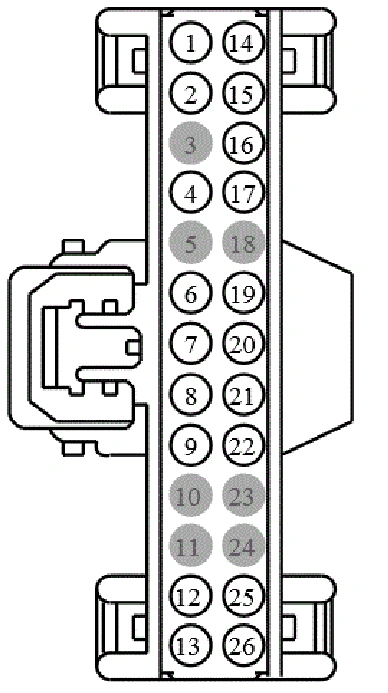

Connector End View C240b - Audio Control Module (Acm) — original illustration 1, reference 3829Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	VME57 (YE-BU)	26	MICROPHONE - AMBIENT NOISE +
2	VME99 (VT)	26	MICROPHONE - AMBIENT NOISE 2 +
3	*	*	Not Used
4	VMEA3 (GN) 26		CTRL MOD. - ACTIVE NOISE CANCELLATION # OUTPUT LEFT FRONT POS (+) (ANC1)
