Connector End View C251 - Data Link Connector (Dlc)

OEM Connector End Views

Source configuration appliesSource reference 3,832HTML edition
← Chapter contentsManual collection

Harness

PIA

Base Part #

14489

Service Pigtail

See Below

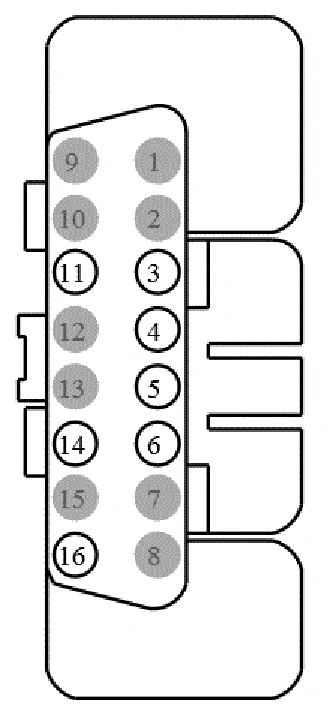

Connector End View C251 - Data Link Connector (Dlc) — original illustration 1, reference 3832Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

* (*)

*

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
