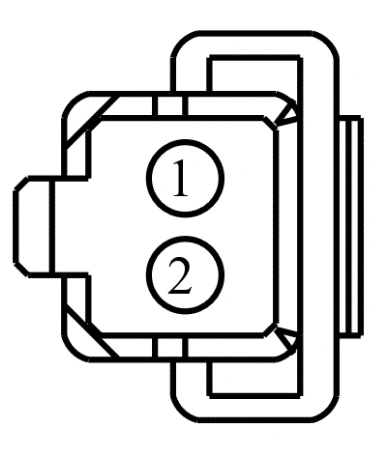

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
2 | GD216 (BK-VT) | 18 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1197 | Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses |
