Connector End View C256 - Passenger Airbag

OEM Connector End Views

Source configuration appliesSource reference 3,837HTML edition
← Chapter contentsManual collection

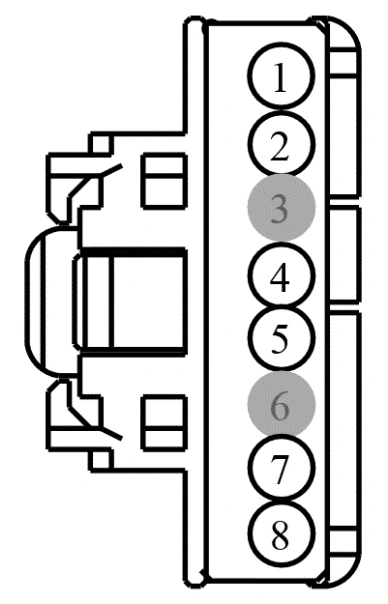

Connector End View C256 - Passenger Airbag — original illustration 1, reference 3837Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR103 (GY-BU)

22

CTRL MOD. - AIR BAG FRONT PASSENGER 1 +

2

RR103 (VT-GN) 22

CTRL MOD. - AIR BAG FRONT PASSENGER 1 -

3

*

*

Not Used

4

CR104 (YE-GY)

22

CTRL MOD. - AIR BAG FRONT PASSENGER 2 +

5

RR104 (WH-BU)

22

CTRL MOD. - AIR BAG FRONT PASSENGER 2 -

6

*

*

Not Used

Ford_Mustang_all_2015-2017.pdf · source reference 3837

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
