Connector End View C254 - Glove Compartment Lamp

OEM Connector End Views

Source configuration appliesSource reference 3,834HTML edition

← Chapter contents Manual collection

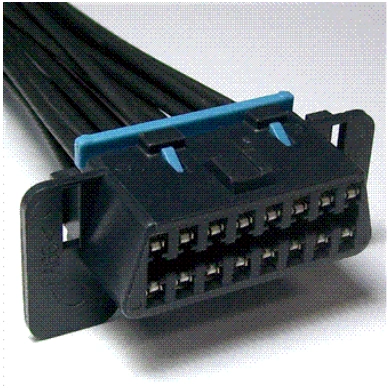

Connector End View C254 - Glove Compartment Lamp — original illustration 1, reference 3834Original colors & callouts · Select to enlarge

16

Pin material:

Tin

Cavities:

16

Vehicle Uses

Test Connector - Diagnostic

CONNECTOR VIEWS > CONNECTOR END VIEW C254 - GLOVE COMPARTMENT

LAMP

Connector:C254

Description

GLOVE COMPARTMENT LAMP

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below
