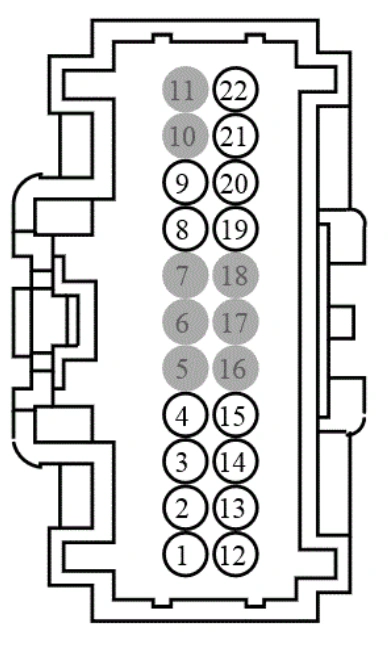

Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
1 | CRP03 (YE-GN) | 20 | |
2 | VRP01 (WH-GN) | 22 | |
3 | VRP02 (BN-VT) | 22 | |
4 | VRP06 (YE-GY) | 22 | |
5 | * | * | |
6 | * | * | |
7 | * | * |
