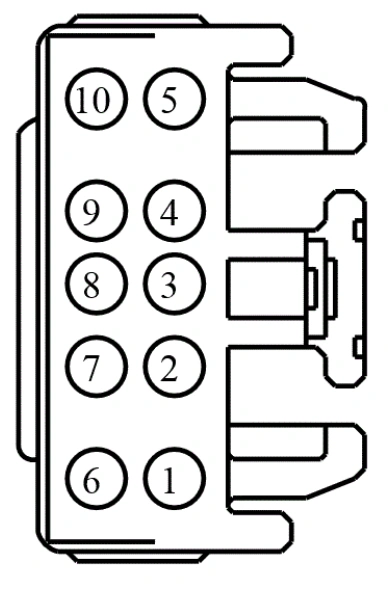

Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
1 | SBB11 (BU-RD) | 12 | 14290 |
1 | SBB11 (BU-RD) | 14 | 14A005 |
2 | SBB12 (GN-RD) | 10 | 14290 |
2 | SBB12 (GN-RD) | 14 | 14A005 |
3 | LE230 (BN-BU) | 20 | 14A005 |
3 | LE230 (BN-BU) | 22 | 14290 |
4 | CE114 (GN-BU) | 16 | 14A005 |
4 | CE114 (GN-BU) | 18 | 14290 |
