Check for Terminal Part Numbers

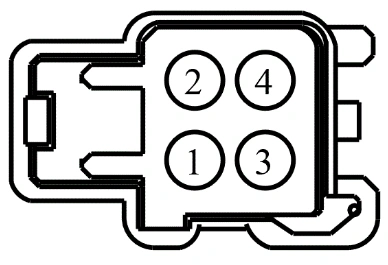

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLN44 (OG) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED + | |
2 | CLN45 (GN) | 26 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN + | |
3 | CLN46 (BU) | 26 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE + | |
4 | RLN44 (BN) | 26 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1076 | Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: |
