Check for Terminal Part Numbers

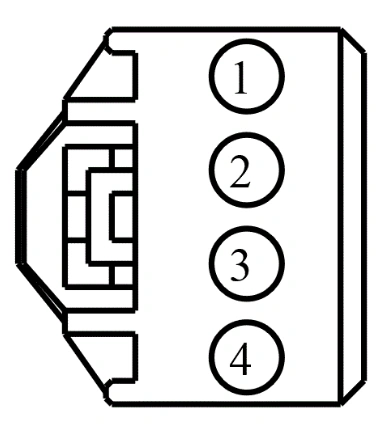

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBB20 (GN-RD) | 20 | FUSE - 20 OR CIRCUIT BREAKER | |
2 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
2 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
3 | CES09 (VT-OG) | 22 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + | |
4 | CCB08 (VT-WH) | 22 | SWITCH - BRAKE ON/OFF (BPP) NORMAL OPEN | |
4 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE ON/OFF (BPP) NORMAL OPEN |
Available Pigtail Kits
