Connector End View C282 - Air Inlet Door Actuator

OEM Connector End Views

Source configuration appliesSource reference 3,852HTML edition

← Chapter contents Manual collection

Service Part Number:

8U2Z-14S411-HA

Pigtail Kit Part Number

Gauge:

WPT-912

14

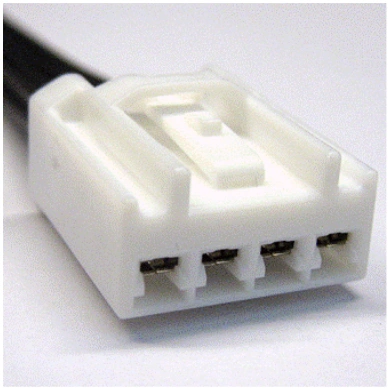

Connector End View C282 - Air Inlet Door Actuator — original illustration 1, reference 3852Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

4

Vehicle Uses

Sensor - Oil Temperature

Sensor - Power Steering Pressure

Sensor - Purge Flow

Switch - Gear Shift Select/Neutral Safety

CONNECTOR VIEWS > CONNECTOR END VIEW C282 - AIR INLET DOOR ACTUATOR

Connector:C282

Description

AIR INLET DOOR ACTUATOR

Color

Harness

18B574

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 3852
