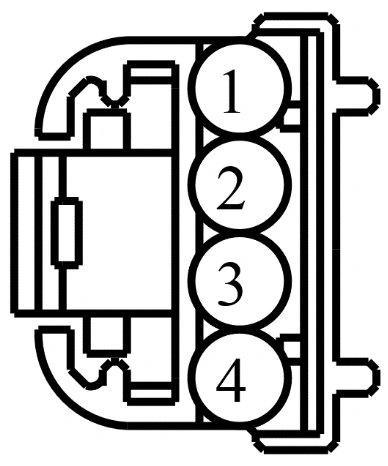

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VH417 (YE-OG) | 22 | SENSOR - SUN LOAD # RIGHT | |
2 | VLF14 (BU-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | |
3 | VH416 (VT-GY) | 22 | SENSOR - SUN LOAD # LEFT | |
4 | RLF14 (GY-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1013 | Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: Silver |
