Connector End View C296 - Evaporator Temperature Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,858HTML edition

← Chapter contents Manual collection

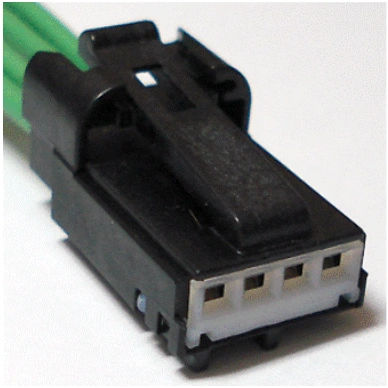

Connector End View C296 - Evaporator Temperature Sensor — original illustration 1, reference 3858Original colors & callouts · Select to enlarge

Vehicle Uses

Module - Auto Lamps

Module - Front Interface

Sensor - EATC In Car Temperature

Sensor - Sunload

Solenoid - Brake Shift Park Interlock

Switch - Door Lock (LH)

Switch - Door Lock (RH)

CONNECTOR VIEWS > CONNECTOR END VIEW C296 - EVAPORATOR

TEMPERATURE SENSOR

Connector:C296

Description

EVAPORATOR TEMPERATURE SENSOR

Color

Harness

18B574

Base Part #

part# N/A

Service Pigtail

See Below
