Check for Terminal Part Numbers

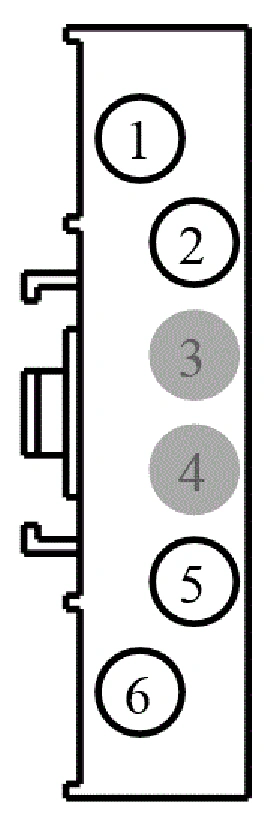

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD216 (BK-VT) | 12 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
2 | VH101 (WH-VT) | 20 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
3 | * | * | Not Used | |
4 | * | * | Not Used |
