Connector End View C296 - Evaporator Temperature Sensor — OEM Connector End Views · Reference 3859

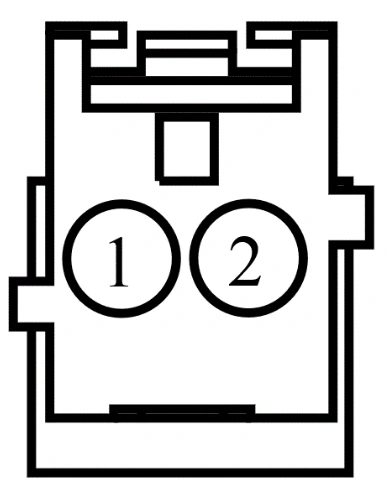

Connector End View C296 - Evaporator Temperature Sensor — original illustration 1, reference 3859Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH406 (VT-BN)	20	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)
2	RH111 (GY-BU)	20	CTRL MOD. - CLIMATE # GENERIC VREF RETURN

Available Pigtail Kits

Service Part Number:

EU2Z-14S411-TA

Gauge:

Pigtail Kit Part Number 20

WPT-1412 Pin material:

Connector End View C296 - Evaporator Temperature Sensor — original illustration 2, reference 3859Original colors & callouts · Select to enlarge

Tin

Cavities:

2

Vehicle Uses

Ford_Mustang_all_2015-2017.pdf · source reference 3859
