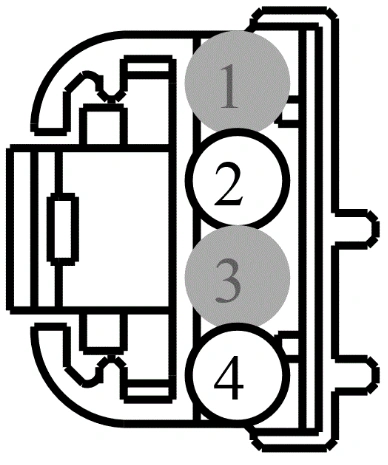

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | VLF14 (BU-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | |
3 | * | * | Not Used | |
4 | RLF14 (GY-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-982 | Service Part Number: 6U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 4 |
