Connector End View C286 - Sunload Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,854HTML edition

← Chapter contents Manual collection

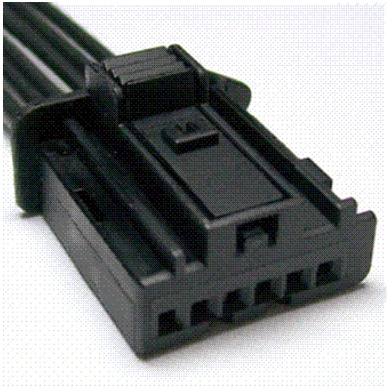

Connector End View C286 - Sunload Sensor — original illustration 1, reference 3854Original colors & callouts · Select to enlarge

Cavities:

6

Vehicle Uses

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Inlet Door

CONNECTOR VIEWS > CONNECTOR END VIEW C286 - SUNLOAD SENSOR

Connector:C286

Description

SUNLOAD SENSOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 3854
