Check for Terminal Part Numbers

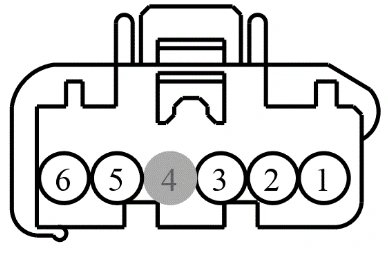

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
2 | VH438 (GN) | 26 | SENSOR - DOOR POSITION RECIRC. | |
3 | LH111 (BN) | 26 | CTRL MOD. - CLIMATE # GENERIC VREF | |
4 | * | * | Not Used | |
5 | CH208 (OG) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
6 | CH207 (BU-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
Available Pigtail Kits
Pigtail Kit Part Number Service Part Number:
WPT-1151 BU2Z-14S411-MA
Gauge:
18
Pin material:
Tin
