Connector End View C287 - Autolamp And Rain Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,856HTML edition

← Chapter contents Manual collection

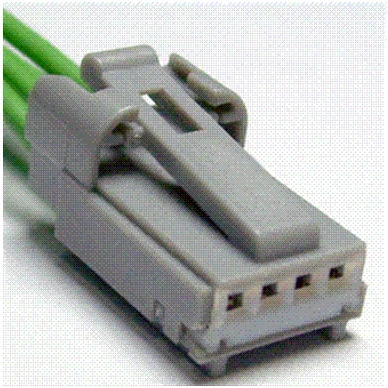

Connector End View C287 - Autolamp And Rain Sensor — original illustration 1, reference 3856Original colors & callouts · Select to enlarge

Cavities:

4

Vehicle Uses

Module - Auto Lamps

Sensor - Sunload

CONNECTOR VIEWS > CONNECTOR END VIEW C287 - AUTOLAMP AND RAIN

SENSOR

Connector:C287

Description

AUTOLAMP AND RAIN SENSOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below
