CONNECTOR VIEWS > CONNECTOR END VIEW C303 - PASSENGER SAFETY BELT

PRETENSIONER

Connector:C303

Description

PASSENGER SAFETY BELT PRETENSIONER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

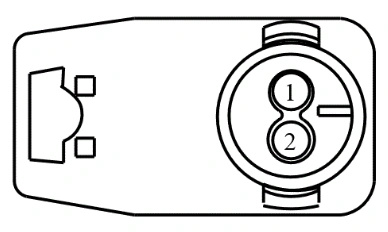

Connector End View C303 - Passenger Safety Belt Pretensioner — original illustration 1, reference 3862Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR171 (VT-GN)	22	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) +
