Connector End View C306 - Parking Brake Switch

OEM Connector End Views

Source configuration appliesSource reference 3,864HTML edition
← Chapter contentsManual collection

Base Part #

part# N/A

Service Pigtail

See Below

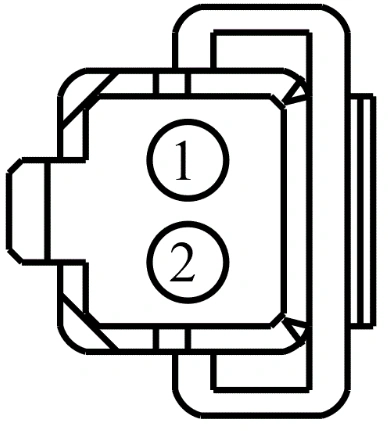

Connector End View C306 - Parking Brake Switch — original illustration 1, reference 3864Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CMC25 (WH-VT)

22

SWITCH - PARKING BRAKE

2

GD233 (BK)

20

GROUND - COWL SIDE/PILLAR A LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1197

Service Part Number:

3U2Z-14S411-PFB

Gauge:

20

Pin material:

Tin (greased)

Cavities:
