Connector End View C310a - Restraints Control Module (Rcm)

OEM Connector End Views

Source configuration appliesSource reference 3,865HTML edition

← Chapter contents Manual collection

2

Vehicle Uses

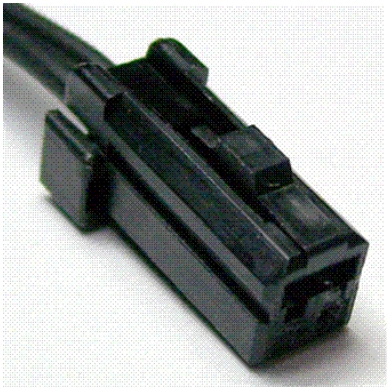

Connector End View C310a - Restraints Control Module (Rcm) — original illustration 1, reference 3865Original colors & callouts · Select to enlarge

Mirror - Vanity

Sensor - Speed

Switch - Brake Deactivation

Switch - Brake Pedal Position

Switch - Brake Pressure

Switch - Park Brake

Switch - Speed Control

Switch - Speed Control Deactivation

Switch - Stop Lamp

Switch - Visor

CONNECTOR VIEWS > CONNECTOR END VIEW C310A - RESTRAINTS CONTROL

MODULE (RCM)

Connector:C310A

Description

RESTRAINTS CONTROL MODULE (RCM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 3865
