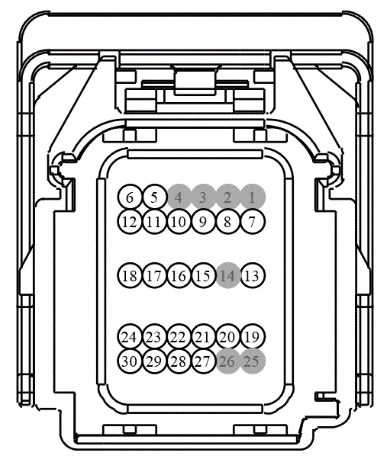

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | * | * | Not Used | |
5 | CR169 (VT) | 22 | CTRL MOD. - AIR BAG PASSENGER KNEE + | |
6 | RR169 (GY-VT) 22 | CTRL MOD. - AIR BAG PASSENGER KNEE - | ||
7 | CR139 (VT-WH) | 22 | CTRL MOD. - AIR BAG DRIVER KNEE + | |
8 | RR139 (YE) | 22 | CTRL MOD. - AIR BAG DRIVER KNEE - | |
9 | RR144 (VT-GN) 22 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - |
