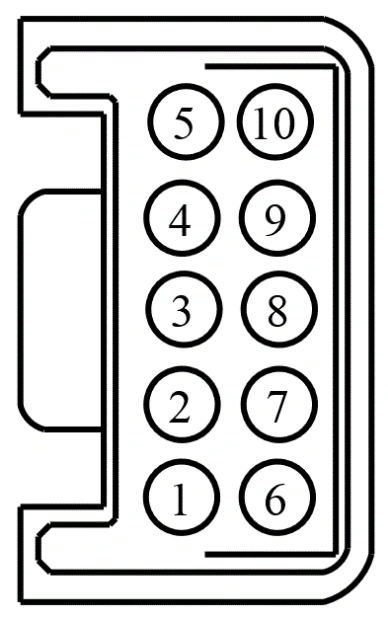

Connector End View C265 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,846HTML edition
← Chapter contentsManual collection

Description

INLINE

Color

LT GY

Base Part #

Service Pigtail

Not Available

MALE

Harness 14A005

FEMALE

Harness 14290

Connector End View C265 - Inline — original illustration 1, reference 3846Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 3846
