CONNECTOR VIEWS > CONNECTOR END VIEW C319 - AUXILIARY POWER POINT

Connector:C319

Description

AUXILIARY POWER POINT

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

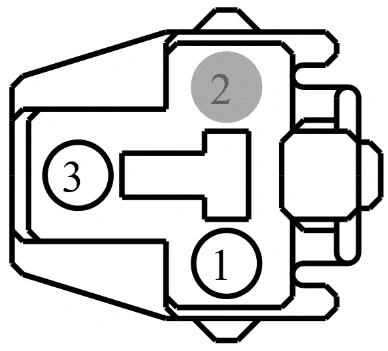

Connector End View C319 - Auxiliary Power Point — original illustration 1, reference 3895Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB53 (GY-BN) 16

FUSE - 53 OR CIRCUIT BREAKER

2

*

*

Not Used

Ford_Mustang_all_2015-2017.pdf · source reference 3895
