Connector End View C323 - Driver Safety Belt Pretensioner

OEM Connector End Views

Source configuration appliesSource reference 3,897HTML edition
← Chapter contentsManual collection

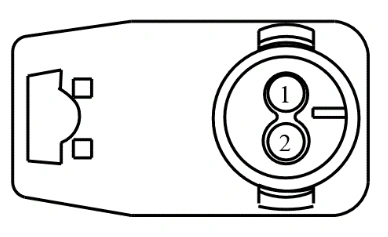

Connector End View C323 - Driver Safety Belt Pretensioner — original illustration 1, reference 3897Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR170 (GN)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +

2

RR170 (BN-BU)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-BHA

Pigtail Kit Part Number

Gauge:

WPT-1225

20

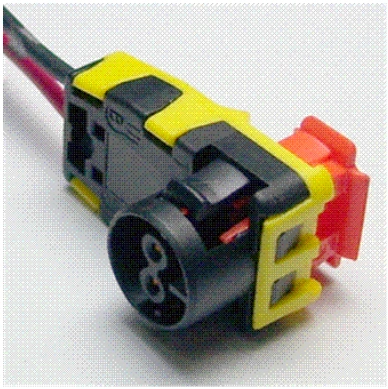

Connector End View C323 - Driver Safety Belt Pretensioner — original illustration 2, reference 3897Original colors & callouts · Select to enlarge

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Squib - Airbag (Driver)

Ford_Mustang_all_2015-2017.pdf · source reference 3897
