Connector End View C323 - Driver Safety Belt Pretensioner — OEM Connector End Views · Reference 3896

3	GD216 (BK-VT) 16

GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 3U2Z-14S411-SJB

WPT-1160 Gauge:

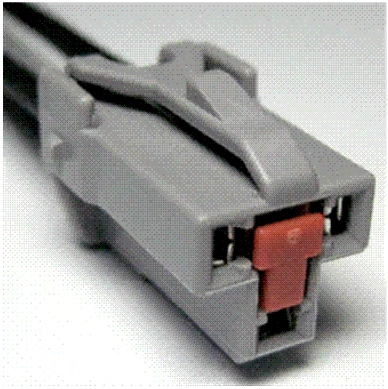

Connector End View C323 - Driver Safety Belt Pretensioner — original illustration 1, reference 3896Original colors & callouts · Select to enlarge

12

Pin material:

Tin

Cavities:

3

Vehicle Uses

Cigar Lighter

Lamp - Ash Tray

Power Point

CONNECTOR VIEWS > CONNECTOR END VIEW C323 - DRIVER SAFETY BELT

PRETENSIONER

Connector:C323

Description

DRIVER SAFETY BELT PRETENSIONER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 3896
